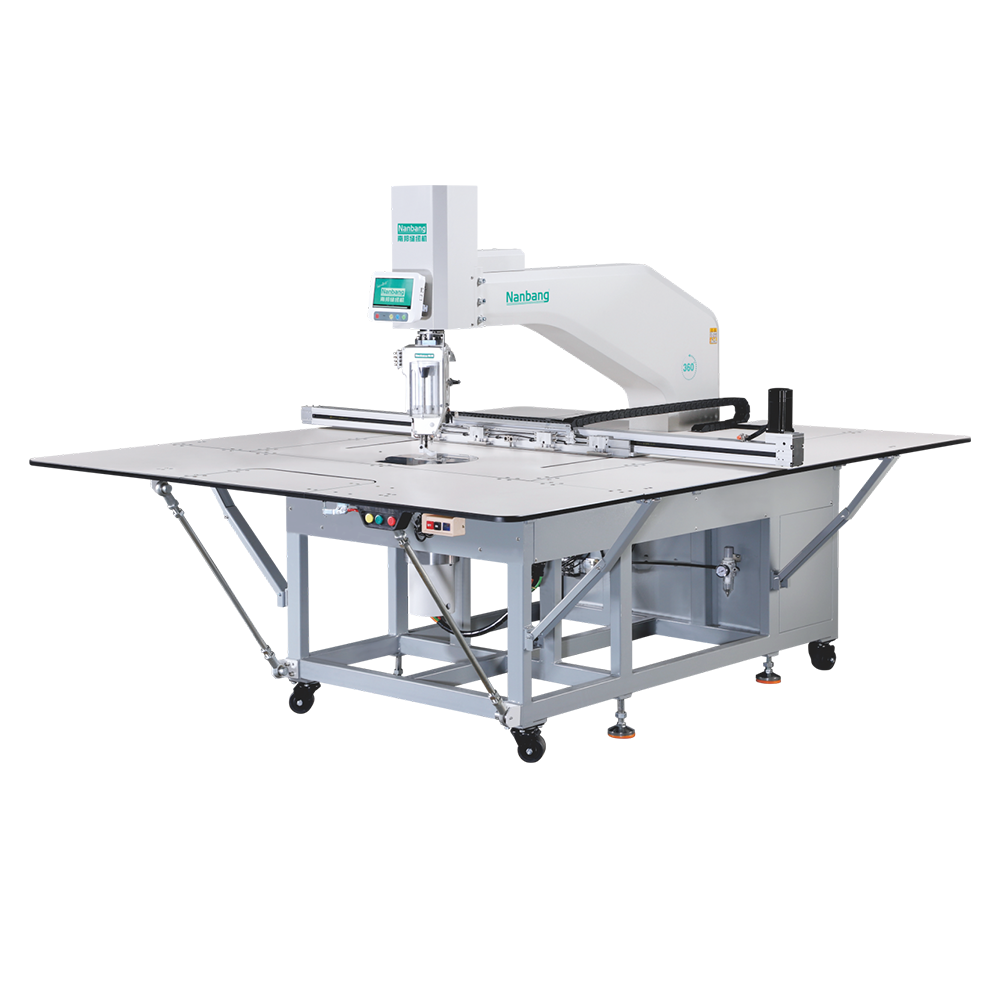

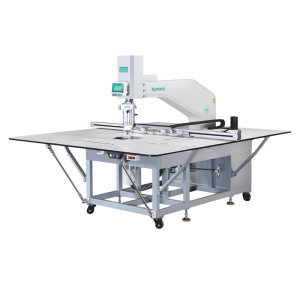

NB 1050A51 - МАШИНА ЗА ПРОГРАМИРУЕМИ ШЕВОВЕ С ВЪРТЯЩА СЕ ГЛАВА

NB 1050A51 – МАШИНА ЗА ПРОГРАМИРУЕМИ ШЕВОВЕ С ВЪРТЯЩА СЕ ГЛАВА

PRICE:16 500.00 lv. / 19 800.00 lv. with VAT

купи с TBIbank

from 3 to 60 months

warranty period – 18 months.

Technical specifications: single needle programmable rotary head machine.

NB 1050A51  – single-needle programmable machine with rotating head for light and medium fabrics.

NB 1050A51  – single needle programmable rotary head machine for medium and heavy fabrics.

  • new technology programmable sewing machine with 360° rotatable head;
  • a special socket for the sewing thread (cone) attached to the rotating head;
  •  the grab console is synchronized with the head above;
  • high quality of stitches, no matter what angles or curves are worked, no matter whether the stitches are along the textile thread or across, they always remain perfect and perfectly aligned one after the other;
  • electronic adjustment of the sewing rotary head in the up/down position during work, when it needs to be moved to another position and accordingly the setting and relative to the material being sewn;
  • electronic adjustment of the sewing rotary head in the up/down position during work, when it needs to be moved to another position and accordingly the setting and relative to the material being sewn;
  • independent adjustment of the pressure and the up/down movement of the material pressing basin;
  • a specially profiled and programmable stitch foot that moves in sync with the needle bar, stabilizing and preventing any movement of the material during needle entry and exit (excellent stitch quality on all fabrics);
  • pneumatic lifting of the foot - 20mm.
  • stitch length – 2.0 – 10.0 mm.;
  • electronic brake to control the tension of the needle thread;
  • automatic thread cutting;
  • electronic brake for pinching the cut upper thread, ensuring a perfect and secure start of the seam;
  • working area - 900x1400mm.;
  •  removable rails for clamping the working template;
  • the work template is clamped on the small rail
  • голямата шина се движи по оста – „Y“;
  • малката шина е закрепена за голямата и се движи в синхрон по оста – „Х“;
  • ТЪЧ СКРИЙН панел разположен удобно до позицията на оператора с бутони „старт/стоп“ на шиенето и авариен стоп;
  • possibility to save programs – 20,000;
  • possibility to work in a cycle;
  • TOUCH SCREEN display for easy change and adjustment of the different types of standard stored and customer created programs;
  • ability to create all kinds of customer programs using the panel in the working field of the machine, many options to create any kind of parallel straight or zig-zag twills, in a circle or semi-circle, sewing mirror or symmetrical stitches, creating twill programs, for sewing details of any type and shape, attaching or assembling small, medium and large components in the field of the machine (studs, pockets, appliqués, panels, processing and gathering of entire fronts, backs, sleeves, etc.), embroidery , and many others;
  • USB port for transferring ready files and programs;
  • high quality and productivity without the need for qualified personnel;
  • maximum sewing speed: 3300 stitches/min. (sewing with a straight stitch with a stitch length of -3 mm.)
  • pattern recognition type: RFID, electronic label scanning
  • electrical supply – 220V.;

At the customer's request: laser cutting (extra charge)
