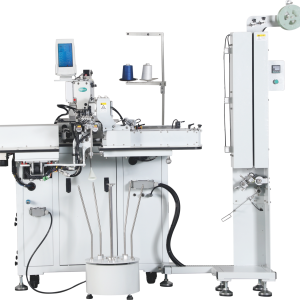

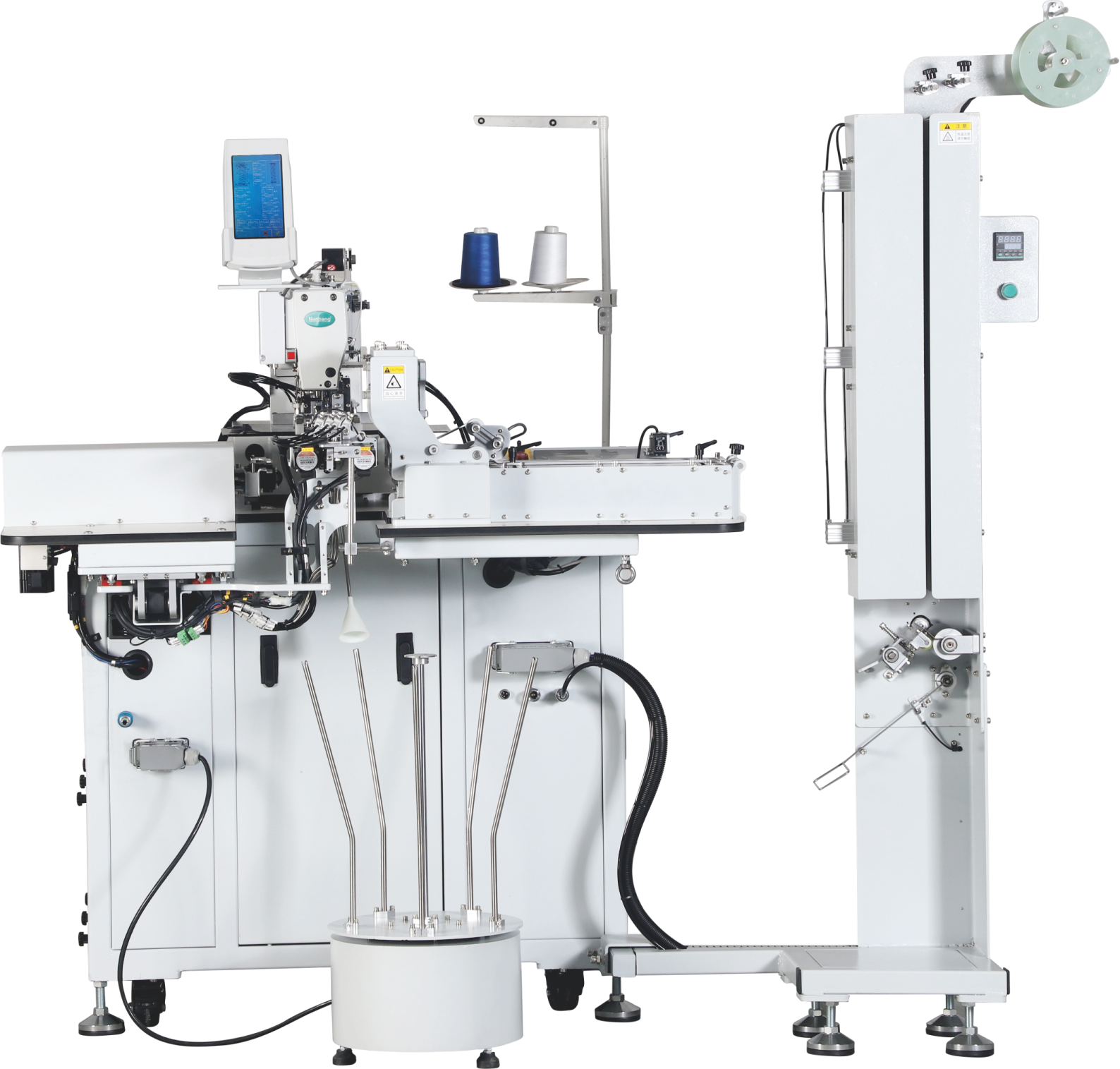

NB-ES-07-А AUTOMATIC ELASTIC JOINING MACHINE

PRICE: 26 200.00 lv./ 31 440.00 lv. with VAT

from 3 to 60 months

warranty period – 18 months.

Technical specifications:

Overlapping and flat join for virous elastics with beautiful stitches.

• elastic band width of 6mm. up to 70mm.
• circle length from 220mm to 999mm.
• Automatic stop for lack of material and joint waste cutting
• The machine will stop automatically once the elastic ribbon is depletedor has a joint during continuous sewing
• cyclic sewing
• touch screen parameter adjustment, directly without complicated mechanical settings, which greatly improves work efficiency.
• Rubber band shaping: adopt vertical qualitative method, pre- heat shrinkage, makes the rubber band to be flat and beautiful, raising sewing quality and production efficiency
• The automatic collection device
• The rotating work plate receives material continuously
• ON CLIENTS REQUEST: LOGO SENSOR- Introducing advanced Panasonic color mark recognition system for elastic stitching, recognizing the position the LOGOprecisely, to ensure the LOGO in the center position against the jointing line
• ON CLIENTS REQUEST- point mechanism
